2 Flute Ball Nose End Mill For Aluminium
- Model
- D1mm-20mm
Item specifics
- Material
- Solid Carbide
- Internal Cooling
- Without
- No of Cutting Flute
- 2 Flutes
- Type
- Ball Nose
- Coating
- Uncoated
- Cutting Direction
- Right - Hand
- Helix Angle
- 30°
- Precision
- ±0.01
- Workpiece
- Aluminium/Alloy Aluminium/Copper/Wood/Soft Steel
- Application
- Milling/Grooving/Contour/Profile/Engraving
- Cutting Diameter
- 0.2mm- 0.9mm
- Full Length
- 50mm/75mm/100mm/150mm
Review
Description
2 Flute Micro Carbide End Mill
|
Description
|

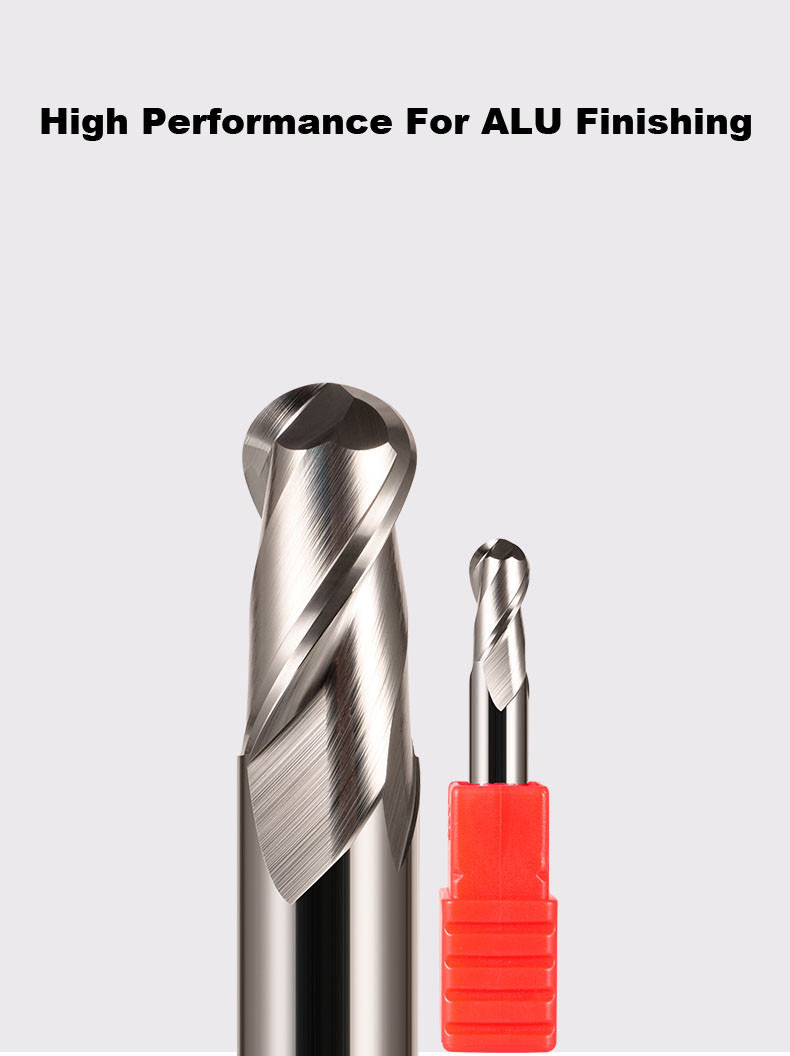

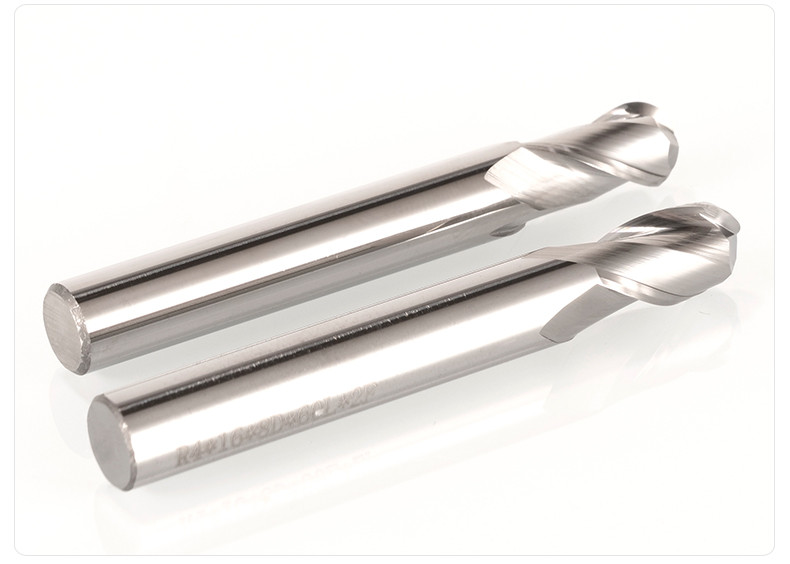

2 Flute Ball Nose End Mills
|
||
|
Hardness
|
HRC55
|
||
|
Coating
|
Uncoated（Mirror Finish)
|
||
|
Helix Angle
|
30°
|
||
Workpiece | Hardened Steel, Stainless Steel, Aluminium | ||
Application | Side Milling and Face Milling/Slotting | ||
1. Have 2 or Flute Ball Nose , Grinded by 5 Axis CNC machines, High Precision Machining 2. High Performance For Hard Materials- Cutter is made by Micro Grain Carbide that is very tough, Wear resistance, high cutting performance. 3. TiSin Coating- Lubricate the end mill for stability at high temperature ans superior wear resistance at high cutting speed. 4.Great Performance at a competitive price. All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency. | |||
HRC45-2F Ball Nose End Mill
Sample Content
HRC55-2F Ball Nose End mill
Sample Content
HRC65-2F Ball Nose End Mill
Sample Content
