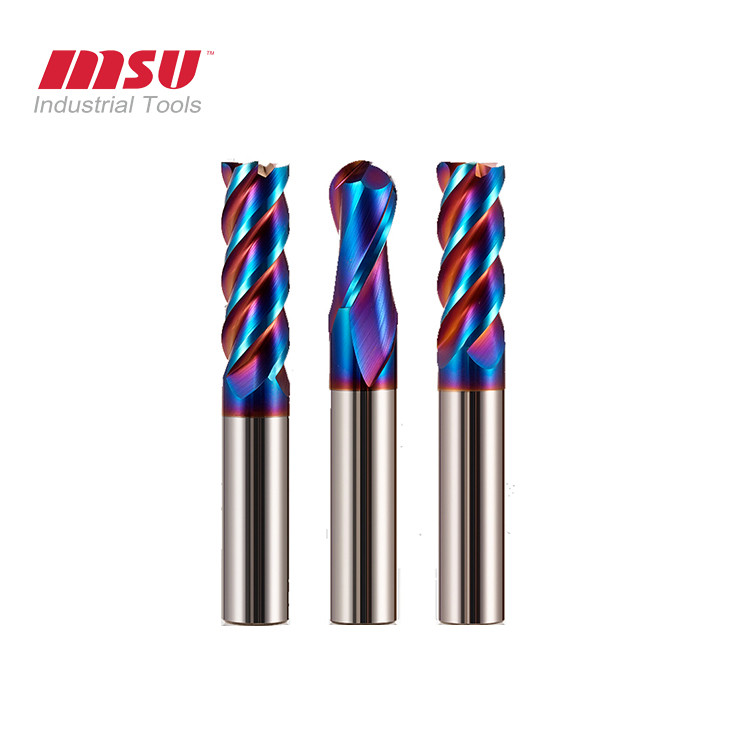

Carbide End Mill HRC65 Nano Coating For Stainless Steel
Carbide End Mill HRC65 Nano Coating For Stainless Steel
Carbide End Mill HRC65 Nano Coating For Stainless Steel
Carbide End Mill HRC65 Nano Coating For Stainless Steel
Carbide End Mill HRC65 Nano Coating For Stainless Steel

Carbide End Mill HRC65 Nano Coating For Stainless Steel

Model
D1mm-20mm

Item specifics

Material
Solid Carbide
Internal Cooling
Without
No of Cutting Flute
2 /4 Flutes
Type
Flat/Ball Nose/Corner Radius
Coating
Nano Blue
Cutting Direction
Right - Hand
Helix Angle
38°/30°/42°
Precision
±0.01
Workpiece
Hardened Steel/Alloy Steel/Stainless Steel
Application
Milling/Grooving/Contour/Profile/Engraving
Cutting Diameter
4mm - 20mm
Full Length
50mm/75mm/100mm/150mm

Review

Description

2 Flute Micro Carbide End Mill
Description
Carbide Ball Nose End Mill HRC65 For Stainless Steel
Hardness
HRC65
Coating
Nano Blue Coating
Helix Angle
38°/30°/42°
Workpiece
Hardened Steel/Alloy Steel/Tool Steel
Application
Side Milling and Face Milling/Slotting

Features
1.Grinded by 5 Axis CNC machines, High Precision Machining
2. High Performance For Hard Materials- Cutter is made by Micro Grain Carbide that is very tough, Wear resistance, high cutting performance.
3. Nano Blue Coating- Lubricate the end mill for stability at high temperature ans superior wear resistance at high cutting speed.

  • BLUE  Nano coating is excellent for most work materials, especially stainless steel, pre-hardened steels, carbon steel and mold steel (~HRc52)
  • Outstanding wear resistance with high quality Si-based PVD coating
  • Maximize the manufacturing cost saving with low price of products.
  • Minimize fracturing by high TRS fine(0.5 ) WC grade.

All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency.

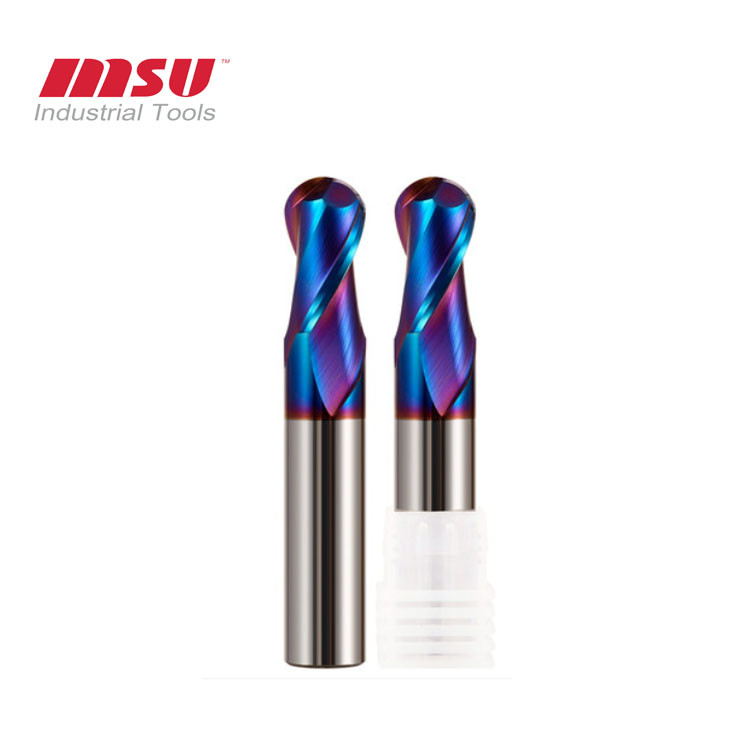

HRC65-2F Ball Nose End Mill

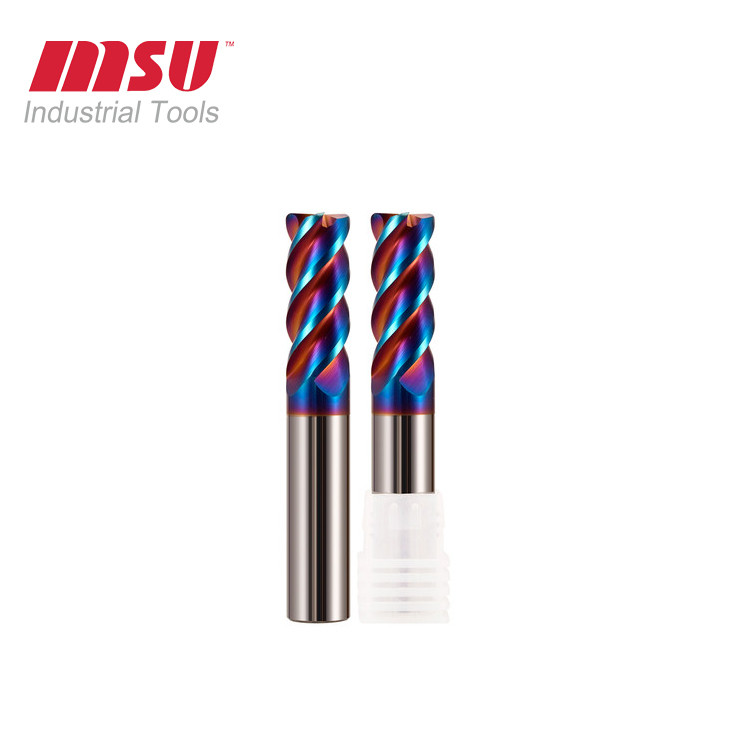

HRC65-4F Squre End mill
HRC65-4F Corner Rdius End Mill
