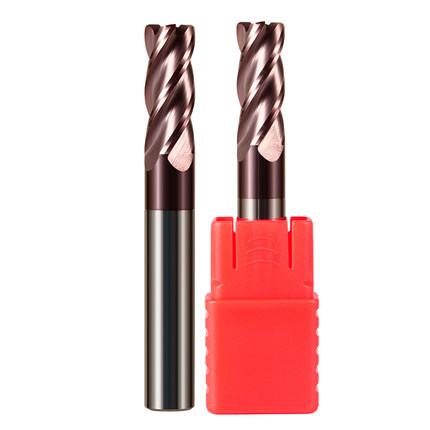

HRC55 -Carbide Corner Radius End Mill
- Model
- D1mm-20mm
Item specifics
- Material
- Solid Carbide
- Internal Cooling
- Without
- No of Cutting Flute
- 4 Flutes
- Type
- Corner Radius
- Coating
- TiSin/ AlCrSiN
- Cutting Direction
- Right - Hand
- Helix Angle
- 38°
- Precision
- ±0.01
- Workpiece
- Carbon Steel/ Alloy Steel/ Cast Iron
- Application
- Profile Machining/ Cavity Machining
- Cutting Diameter
- 4mm - 20mm
- Full Length
- 50mm/75mm/100mm/150mm
Review
Description
MSU Carbide Corner Radius For Steel Machining
|
Description
|
MSU Carbide Corner Radius For Steel Machining
|
||
|
Hardness
|
HRC55
|
||
|
Coating
|
TiSin/AlCrN Coating
|
||
|
Helix Angle
|
38°
|
||
Workpiece | Steel/Cast Iron | ||
Application | Side Milling and Face Milling/Slotting | ||
Corner radius end mills or bull end mills are single-ended cutting tools used for making a specific corner radius to a workpiece or to remove a sharp edge or burr in a finishing operation. They are less prone to chipping and generally have a longer tool life. Bull end mills are usually made from carbide steel and are available in various flute counts and helix angle configurations. All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency. | |||
